GENERAL
+12V Rail Outputs : Single
100% Tested and Verified : Y
ATX12V 2.2 & ESP12V 2.91 Compliant : Y
ATX12V 2.31 Compliant : Y
Compatible with Intel and AMD platforms : Y
UPC Number : 778656069251

TECHNOLOGIES
CrossFire Ready : Y
SLI Ready : Y

RATINGS & EFFICIENCY
AC Input Current (Arms) : 10-5.5 Amps (rms)
AC Input Frequency (Hz) : 50/60 Hz
AC Input Voltage (Vac) : 100-240 VAC
Efficiency @ Typical Load : Up to 85%
Energy-Efficiency : 80 Plus Bronze Certified
Maximum Wattage : 500 Watts

OTHER FEATURES
Tight voltage regulation (±5%) : Y

LOAD RANGE
Max -12V Output Current (A) : 0.3A
Max +12V Output Current (A) : 45A (up to 540W, 90% of 600W)
Max +3.3V Output Current (A) : 20A (combined +3.3V & +5V up to 110W)
Max +5V Output Current (A) : 20A (combined +3.3V & +5V up to 110W)
Max +5VSB Output Current (A) : 2.5A

CABLE CONNECTORS
Fixed FDD : One Connector 10cm
Fixed (Molex): 2, 1x Fixed Flat cable (40+10cm)
Fixed PCI-E Connectors : 2, 1x Fixed Flat cable (6+2)pin+(6+2)pin (55+10cm)
Fixed ATX12V / EPS12V : 2, 2x Fixed Flat cable (4+4)pin (55cm)
Fixed Motherboard Connector : 1x sleeved (20+4)pin (50cm)
Fixed SATA : 6, 2x Fixed Flat Cable (45+15+15cm)
SAFETY & PROTECTION
Active Power Factor Correction (PFC) : Y
Over Current Protection (OCP) : Y
Over Power Protection (OPP) : Y
Over Voltage Protection (OVP) : Y
Short Circuit Protection (SCP) : Y
Under Voltage Protection (UVP) : Y

PHYSICAL

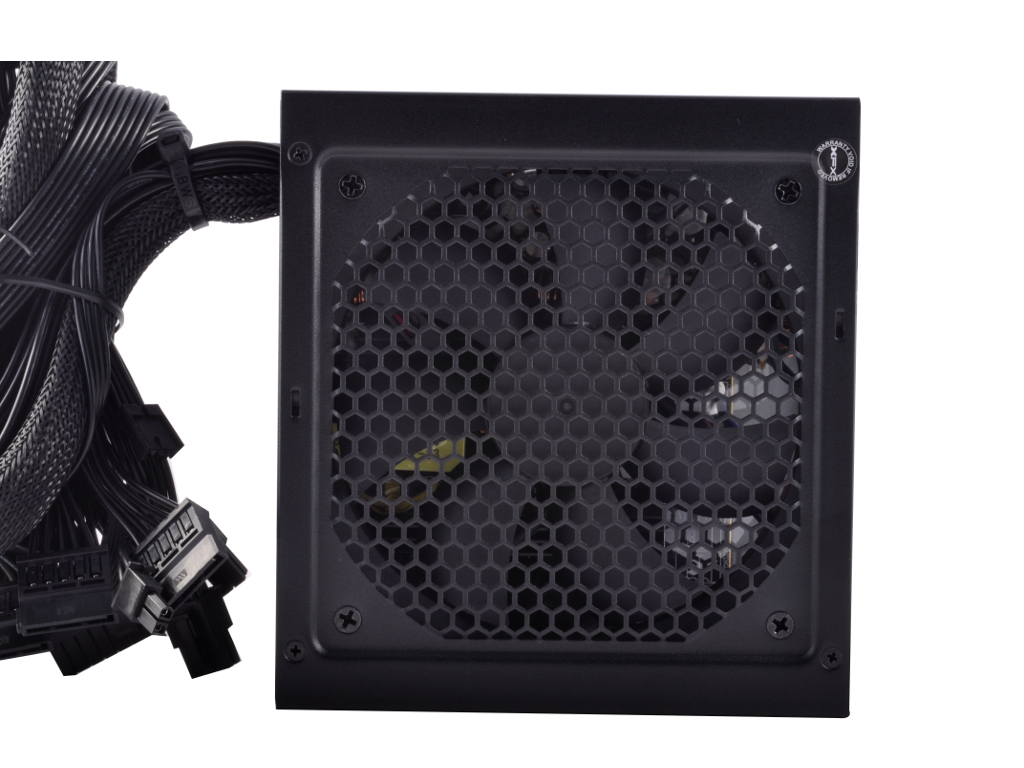

Cooling Fan Size (mm) : 120mm Sleeve Fan (2000rpm, 74.48CFM, 29.28dBA)

INCLUDES
AC Power Cord : 1
Units/Carton : 10
User’s Manual : 1
